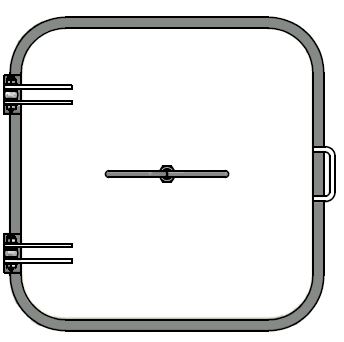

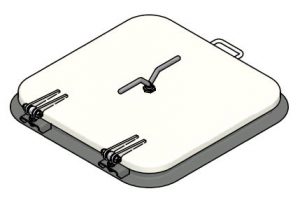

This is an A0 Watertight Service Hatch.
The Libra WRH Series is a robust and heavy duty hatch type.
This A0 Hatch is suitable to withstand A0 fire requirements.
It is Watertight and is designed to withstand water pressure from both sides.
They are pressure tested to a given pressure together with the class authorities.
This hatch is available in steel material only.
They are Type Approved certified by DNV-GL with regards to Fire and Water.
Maximum size according to our certificates is: CO (Clear Opening) = 1230 x 1230mm (length x width).
Other sizes can be discussed upon request.
- Moving parts made of high quality stainless steel
- Steel hatch cover.
- Steel frame available.
- Adjustable moving parts
- Adjustable frame brackets on request
- Angle profile frame available
- Quick-acting or wheel-operated locking system
- 100 mm corner radius
- Size according to request
- Special surface treatment is available upon request
- Thermal insulation is available
